Viral Extract kit used for both research purposes and in vitro
diagnosis (IVD) and is validated for COVID-19 diagnosis
【PRODUCT NAME】
Viral RNA&DNA Extraction Kit
【METHOD】
Magnetic Bead Method
Overview
- One kit for any common clinical sample type
- High sensitivity
- Reliable nucleic acid isolation—suitable even for low viral titers
Features: Viral RNA&DNA Extraion Kit(Magnetic Beads) Unique buffer system
isolates Viral DNA/RNA, chemically coated magnetic beads absorb DNA/RNA,
aiming at obtaining purified Nucleic acid effiicently from samples.
ensuring accurate downstream detection.
-
Flexible: Various options of specifications, for all types of samples and protocols.
-
Fast and Easy: Pre-filled for automated extrators, ready to run.
-
Reliable: Approved by NMPA(China), CE-certified among many official and
industrial certifications.
- Stable: Fast extraction from 32 samples within 15 minutes with highly stable
and repeatable results.
The kit is designed for common clinical samples, such as whole blood, serum or
plasma, feces, tissue, or swabs. After a sample-specific pre-lysis procedure, 200 µl
of liquid or homogenized sample is used in the purification procedure.
【APPLICATIONS】
- Extraction of viral RNA and DNA and microbial DNA from clinical samples
- Clinical testing applications
【PACKAGE SPECIFICATION】
48 tests/ box
【INTENDED USE】
This kit is used to extract DNA/RNA from plasma, serum, animal tissues, body fluids
and other samples. The optimized chemistry of the reagents ensures pure nucleic
acid is selectively bound to the paramagnetic bead particles, and impurities are
efficiently removed by a series of quick wash steps. The resulting high-quality
DNA/RNA is eluted with elution buffer or water. The Viral RNA&DNA Extraction Kit
can be easily adapted to automated magnetic bead separation instruments and
workstations. The nucleic acid extracted by this kit can be used for Re a-time PCR,
Nothern Blot, Blotting Hybridization, cDNA Library Construction.
The kit can be used for both research purposes and in vitro diagnosis (IVD) and
is validated for COVID-19 diagnosis.
【COMPONENTS OF THE KIT】
Components |
96T/Kit |
Magnetic Rod Sleeve |
1 piece/kit |

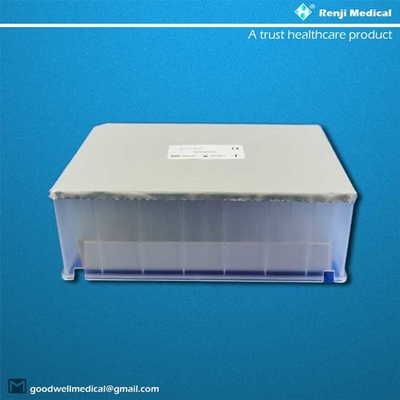

Prefilled 96Deep Well Plate (Lysis Solution) |
96T×1 plate |
Prefilled 96Deep Well Plate (Magnetic Beads) |
96T×1 plate |
Prefilled 96Deep Well Plate (Wash Buffer 1) |
96T×1 plate |
Prefilled 96Deep Well Plate (Wash Buffer 2) |
96T×1 plate |
Prefilled 96Deep Well Plate (Elution Solution) |
96T×1 plate |
【STORAGEAND STABILITY】
The kit should be stored at room temperature 5-25℃. The kit is valid for 12 months.
【APPLICABLE INSTRUMENTS】
It is suitable for the automatic nucleic acid extraction instrument such as RJ40.
【SPECIMEN REQUIREMENTS】
1.The virus in liquid samples such as plasma, serum, ascites, oral fluid can be directly
extracted.
2.The virus in animal and plant tissues needs to add an appropriate amount of saline or
PBS to the sample, grind it thoroughly, centrifuge at 12000rpm for 5-10 minutes, and
take the supernatant for use.
【SPECIMEN EXTRATION OPERATION】
1.Take out the pre-packed deep well plate, tear off the sealing film, and add 200ul
of the above serum, plasma, throat swab, nasal swab, saliva, and other samples to
the Lysis Solution plate hole. In accordance with the order of the plate positions
(1, 2, 3, 4, 6), put the Lysis Solution Plate (1), Magnetic Beads Plate (2), Wash Buffer l
Plate (3), Wash Buffer 2 Plate(4) and the Elution Solution Plate(6) in the automatic
nucleic acid extractor, and install the Magnetic Rod Sleeve.
2.Turn on the nucleic acid extractor, set the following program and run it(-15min);
NO. |
Step |
Site (1-6) |
Volume (µl) |
Mixing |
Delay |
Binding |
Bind Height
(mm)
|
Heating |
Time (min) |
Speed (1-10) |
Time (min) |
Position |
Move (min) |
Top (sec) |
Bottom (sec) |
Site (1/6) |
Temp (ºC) |
1 |
Move |
2 |
250 |
0.1 |
8 |
0 |
- |
0.5 |
10 |
10 |
Auto |
Off |
- |
2 |
Lysis |
1 |
800 |
4.0 |
8 |
0 |
- |
0.5 |
10 |
10 |
Auto |
1 |
65 |
3 |
Wash1 |
3 |
600 |
1.0 |
8 |
0 |
- |
0.5 |
10 |
10 |
Auto |
Off |
- |
4 |
Wash2 |
4 |
600 |
1.0 |
8 |
0 |
- |
0.5 |
10 |
10 |
Auto |
Off |
- |
5 |
Elution |
6 |
80 |
2.0 |
8 |
0 |
- |
0.5 |
10 |
10 |
Auto |
6 |
85 |
6 |
Drop |
2 |
250 |
0.3 |
8 |
0 |
- |
0 |
0 |
|
Auto |
Off |
- |
3. At the end of the run remove the magnetic rod sleeves;
4. Take out the 96 deep well plate, transfer the purified DNA/RNA into a 1.5ml
centrifuge tube from the plate with Elution Solution in order for the following
operation or store at-80℃ (If there is a small number of magnetic beads remaining,
it can be removed by centrifugation or magnetic plate);
5.Close the program and shutdown the instrument.
【PRODUCT PERFORMANCE INDEX】
1. The purity:The ratio of absorbance OD260/OD280 is between 1.8-2.2.
2. The precision:The coefficient of variation (CV) of the RNA/DNA content is≤5%.
【PRECAUTIONS】
1.Please read this kit's operating instructions carefully before use, and operate
carefully as required.
2.The virus has a strong infection ability, and various defense measures must be
prepared before operation.
3.Wear clean gloves and masks during operation.
4.Use RNase/DNase-free tips and 1.5ml centrifuge tubes.
5.All centrifugation steps are performed at room temperature (5-25°℃) .
6.Frozen samples need to be thawed to room temperature.
7.Do not use products beyond the expiration date; do not mix reagents of different
lot numbers.
